FJD
T1
Hybrid scanner with 120 m range and 640,000 pts/s
Capture large sites with mobile scanning, switch to tripod mode for higher local accuracy, and combine both in one hybrid LiDAR workflow with FJD Trion T1.
- Scanning range
- 80 m @ 10% reflectivity; 120 m @ 80% reflectivity
- Relative accuracy
- Mobile scanning: ≤ 1 cm; Tripod scanning: 4 mm @ 10 m, 8 mm @ 30 m
- Weight (main unit)
- 1.645 kg
- FOV
- 360° × 270°
- Delivery:
- 5-8 working days
Price depends on configuration, availability, and delivery destination. Send a request and we will prepare a tailored quote.
Not sure which model? Find the right scanner in 4 questions →About T1

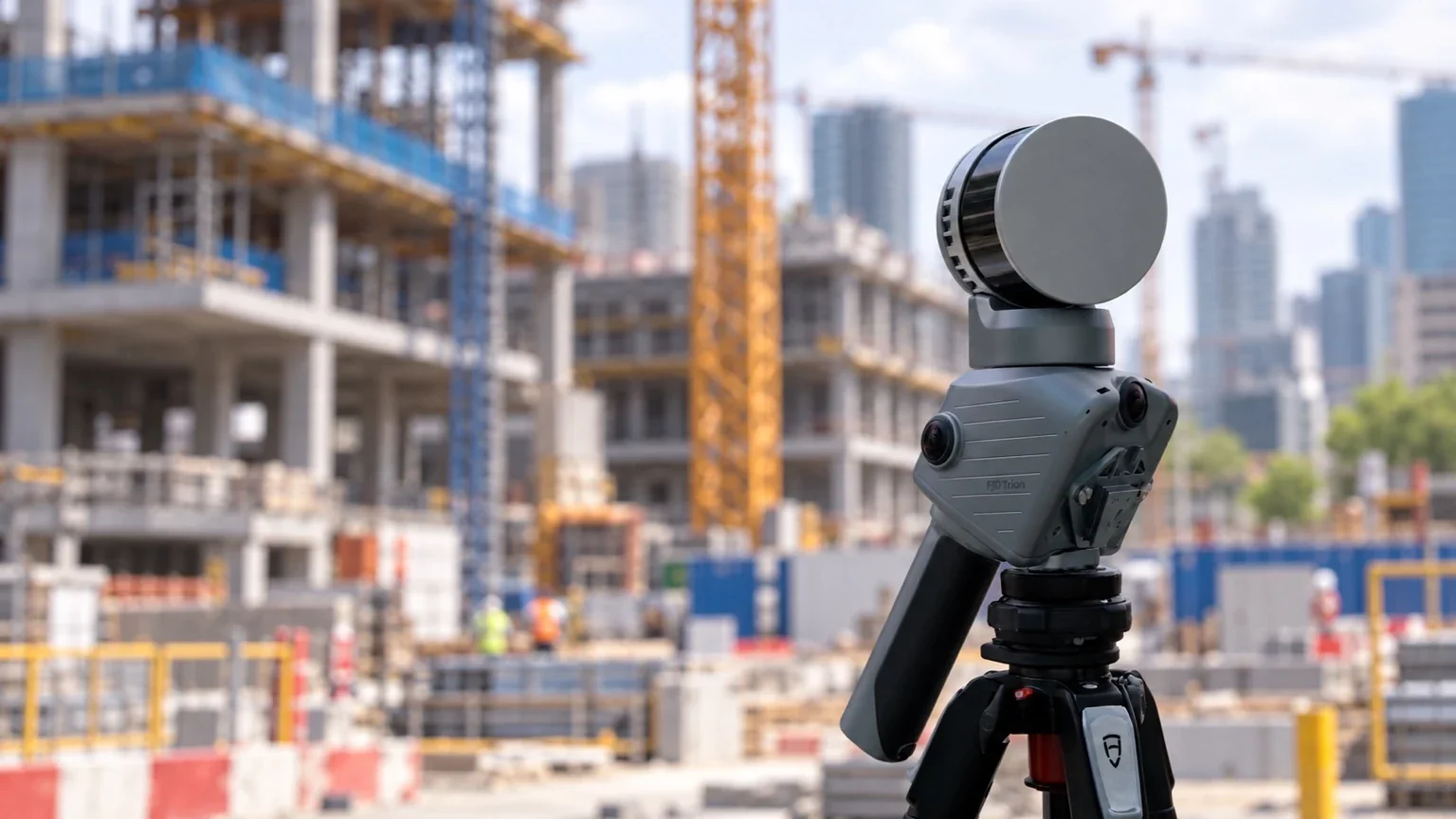

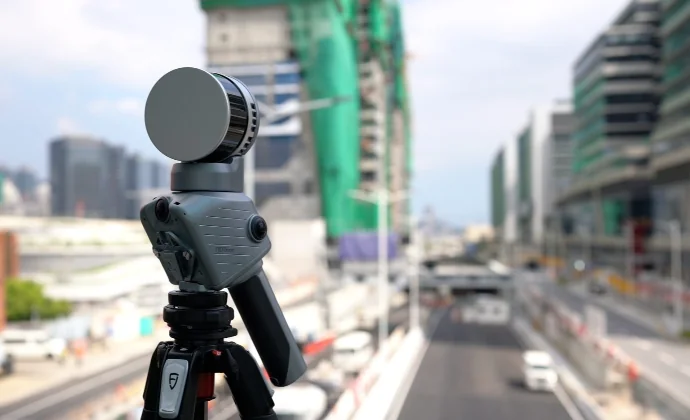

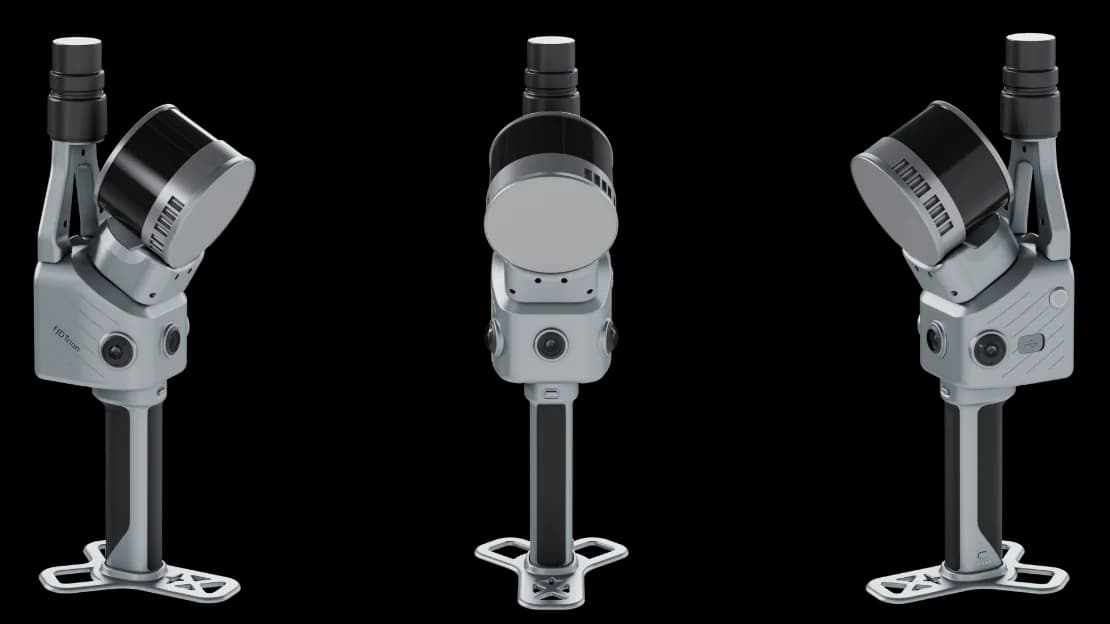

The FJD Trion T1 is a hybrid LiDAR scanner for large sites that also need tighter local accuracy. Cover the area in mobile mode, then switch to tripod mode where detail matters, and keep both captures in one project.
Mobile mode reaches 120 m at ≤ 1 cm relative accuracy. Tripod mode is 4 mm at 10 m, out to 60 m, at 640,000 points per second.

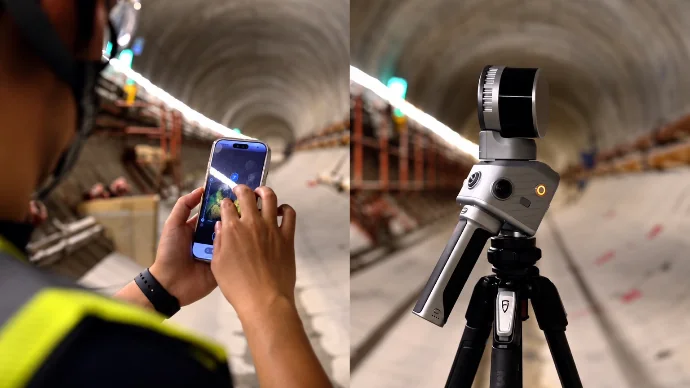

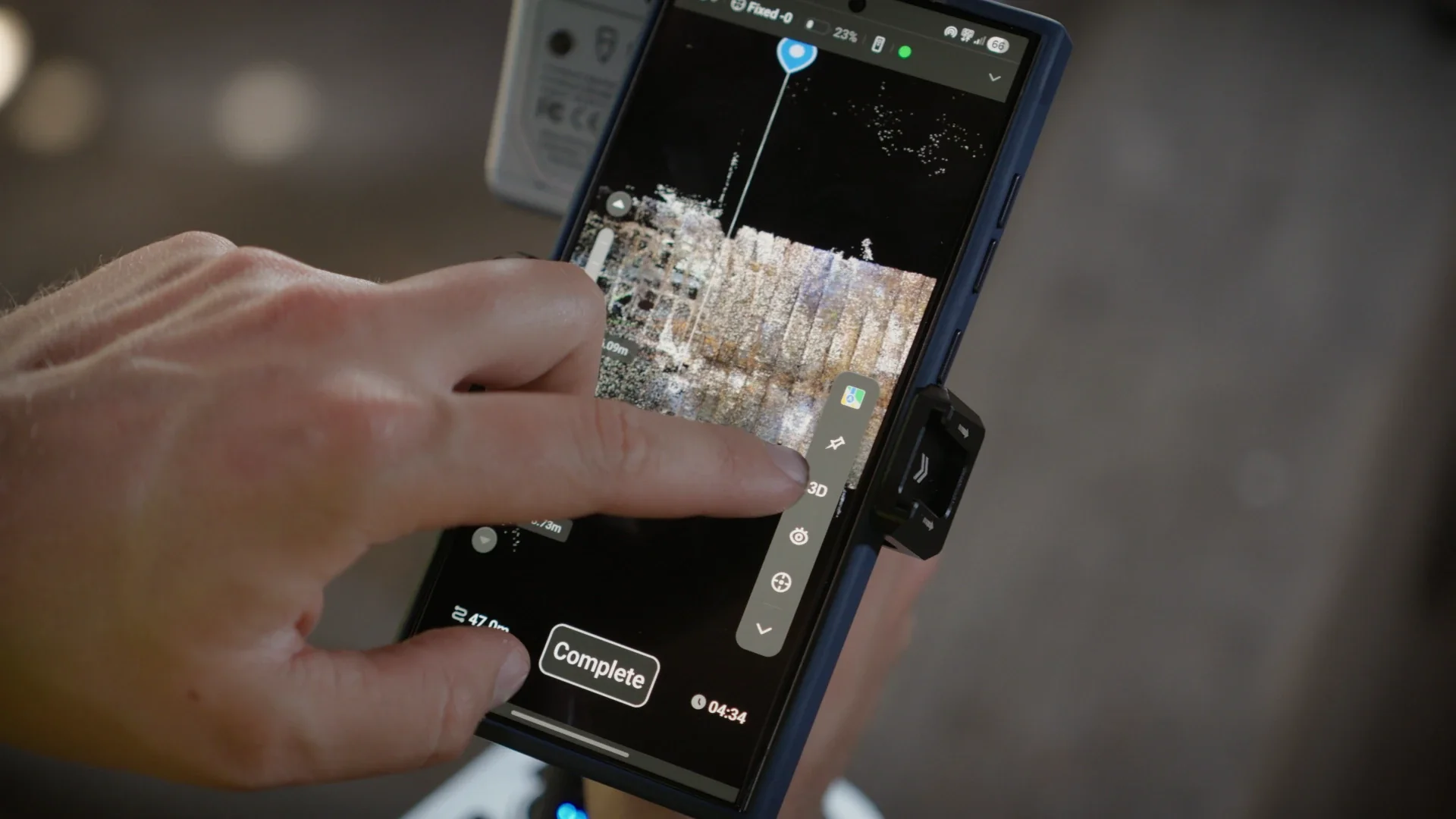

Two 48 MP cameras capture 360° panoramic imagery at each station for true-to-scene colourisation. View the colourised point cloud in real time in 2D or 3D to review the scan. T1 supports continuous scanning sessions of up to 1 hour. Scan large sites in stages or return later to capture updates by matching a previously scanned area on site, with the software automatically combining the data.

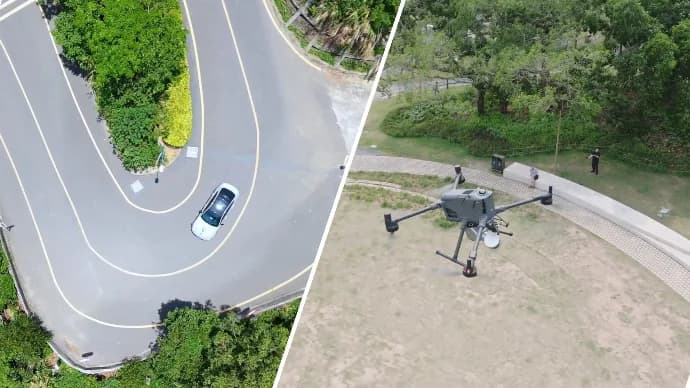

T1 can be configured for terrestrial, handheld, vehicle-mounted, or airborne capture.
Highlights
- Hybrid mobile and terrestrial LiDAR in one scanner
- 640,000 pts/s · FOV 360° × 270°
- Mobile: ≤ 1 cm relative accuracy · 0.5 – 120 m
- Terrestrial: 4 mm @ 10 m, 8 mm @ 30 m · 0.5 – 60 m
- Station times from 30 seconds to 2 minutes
- IP54 · GNSS RTK/PPK · 3.5 h with dual handles
In Action

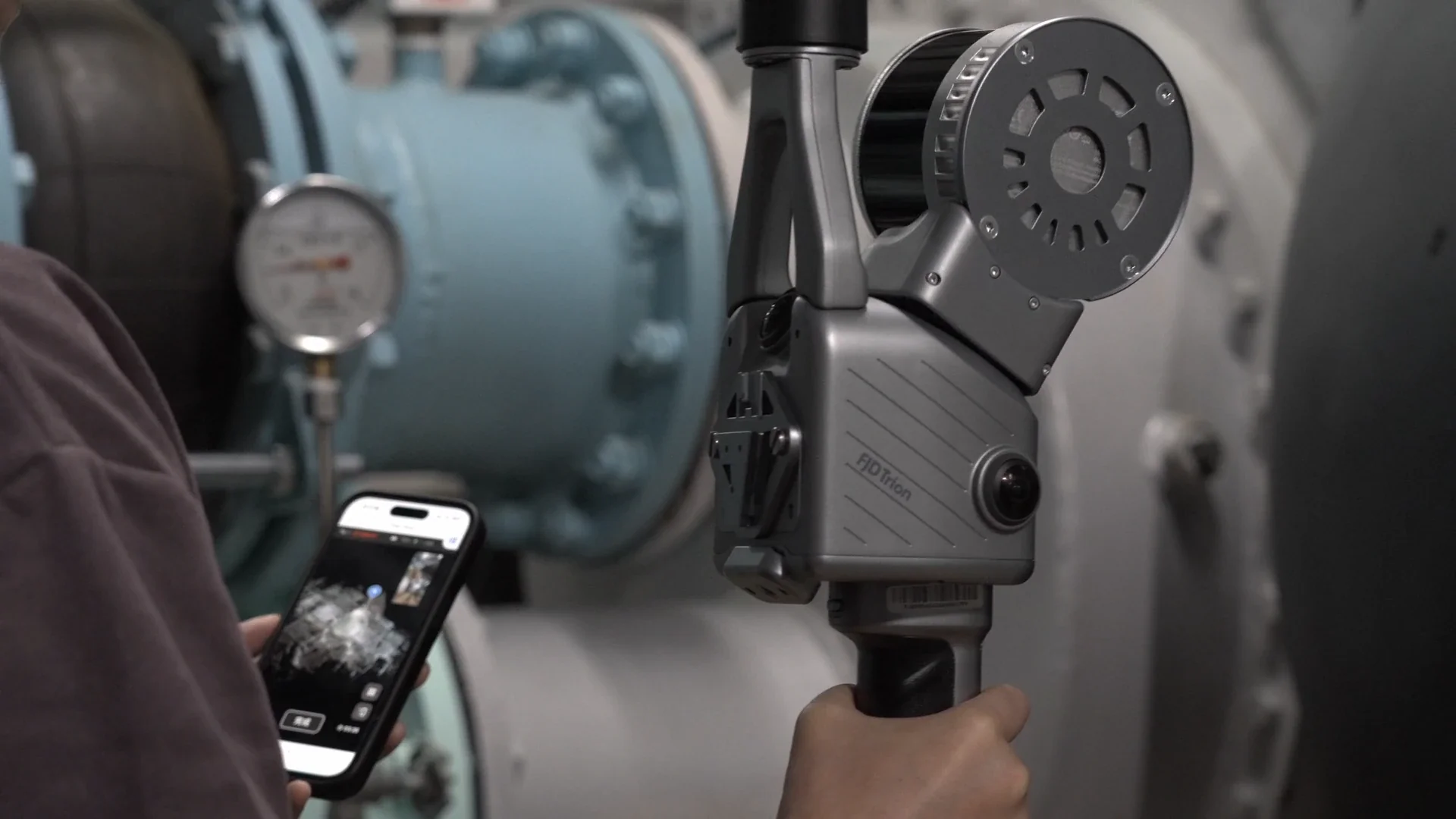

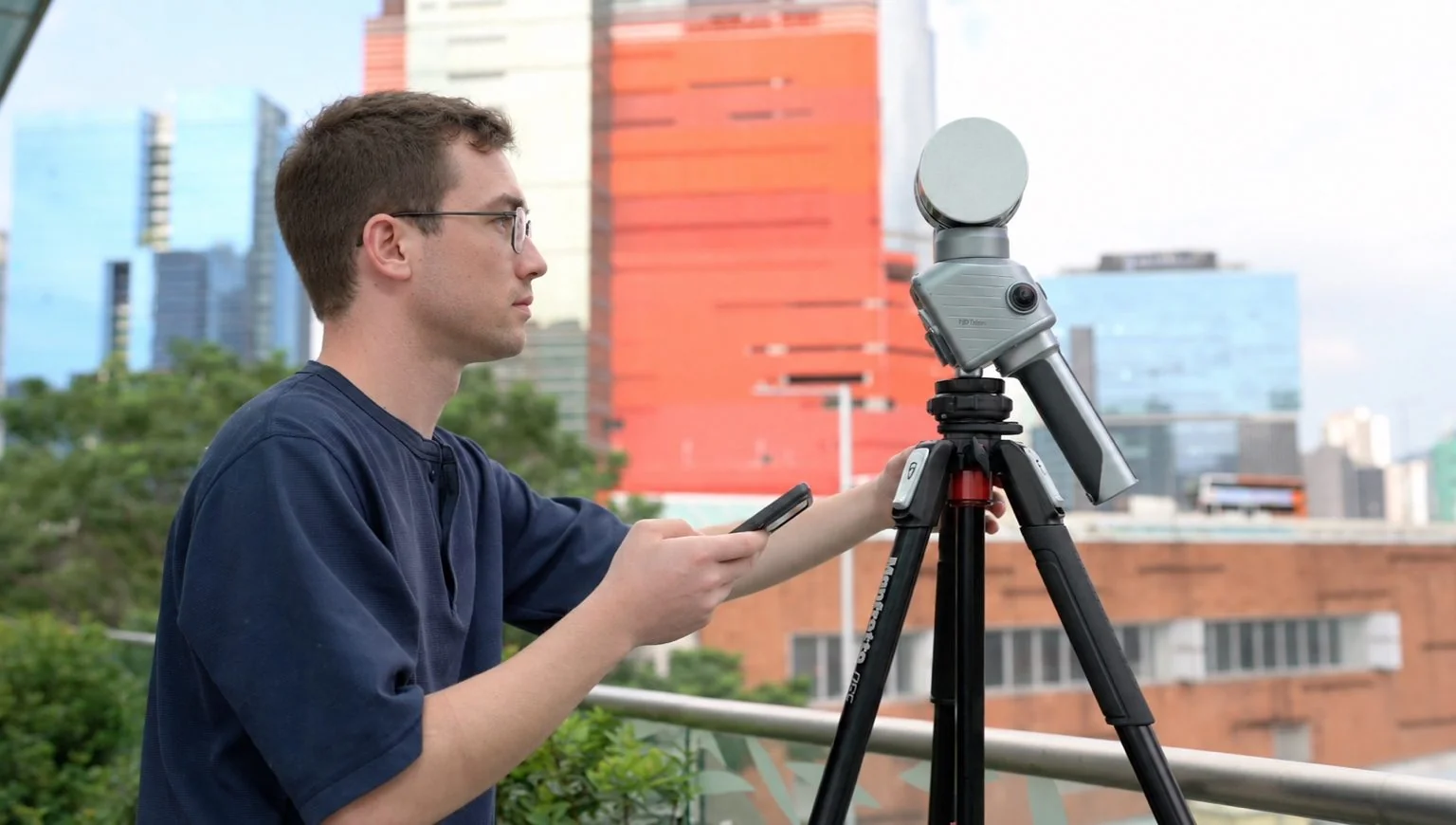

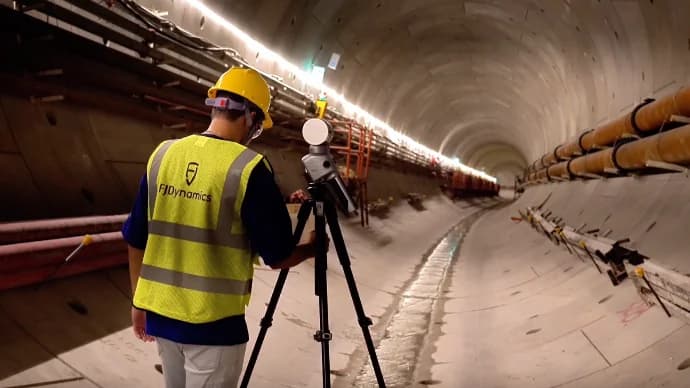

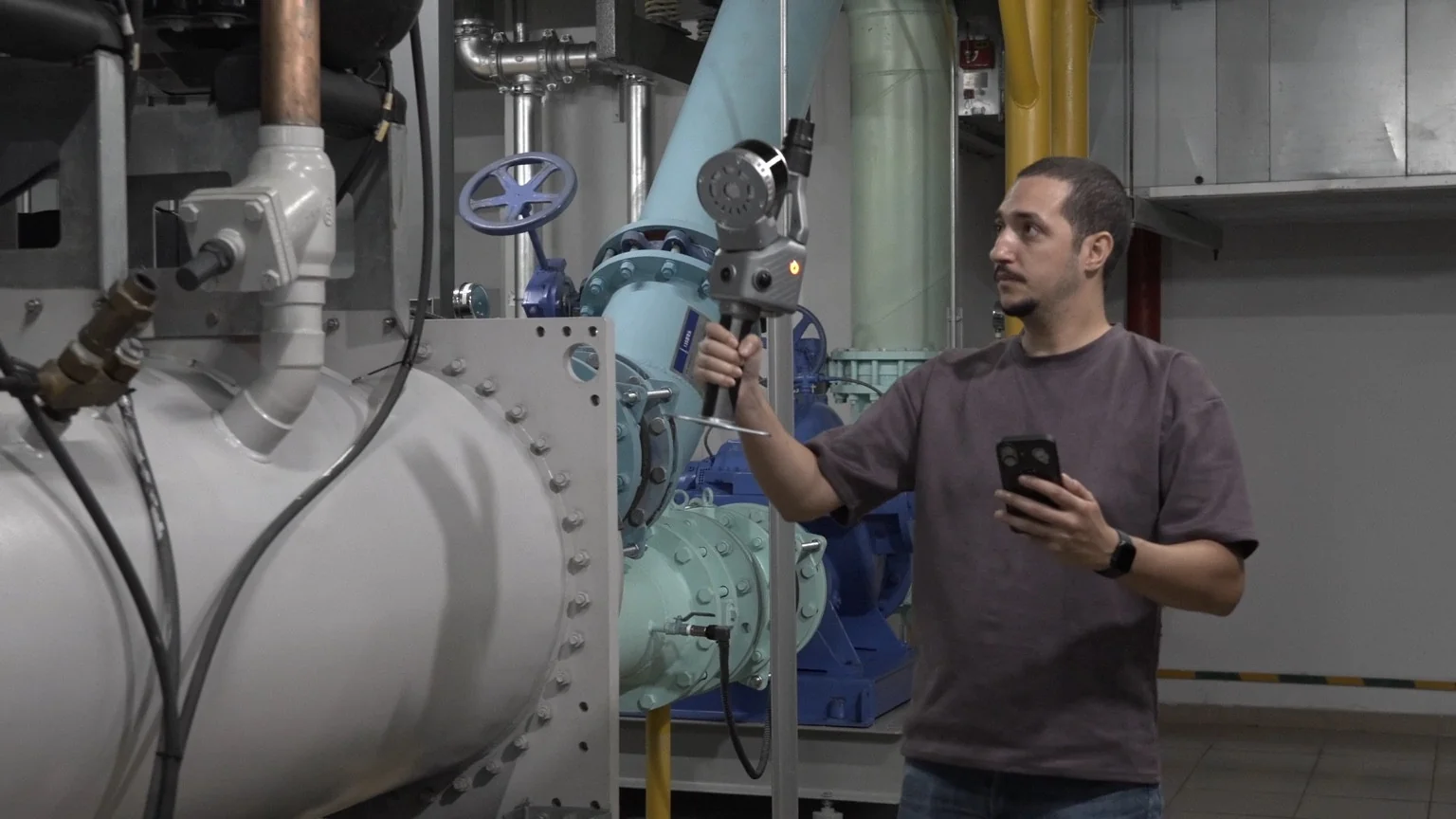

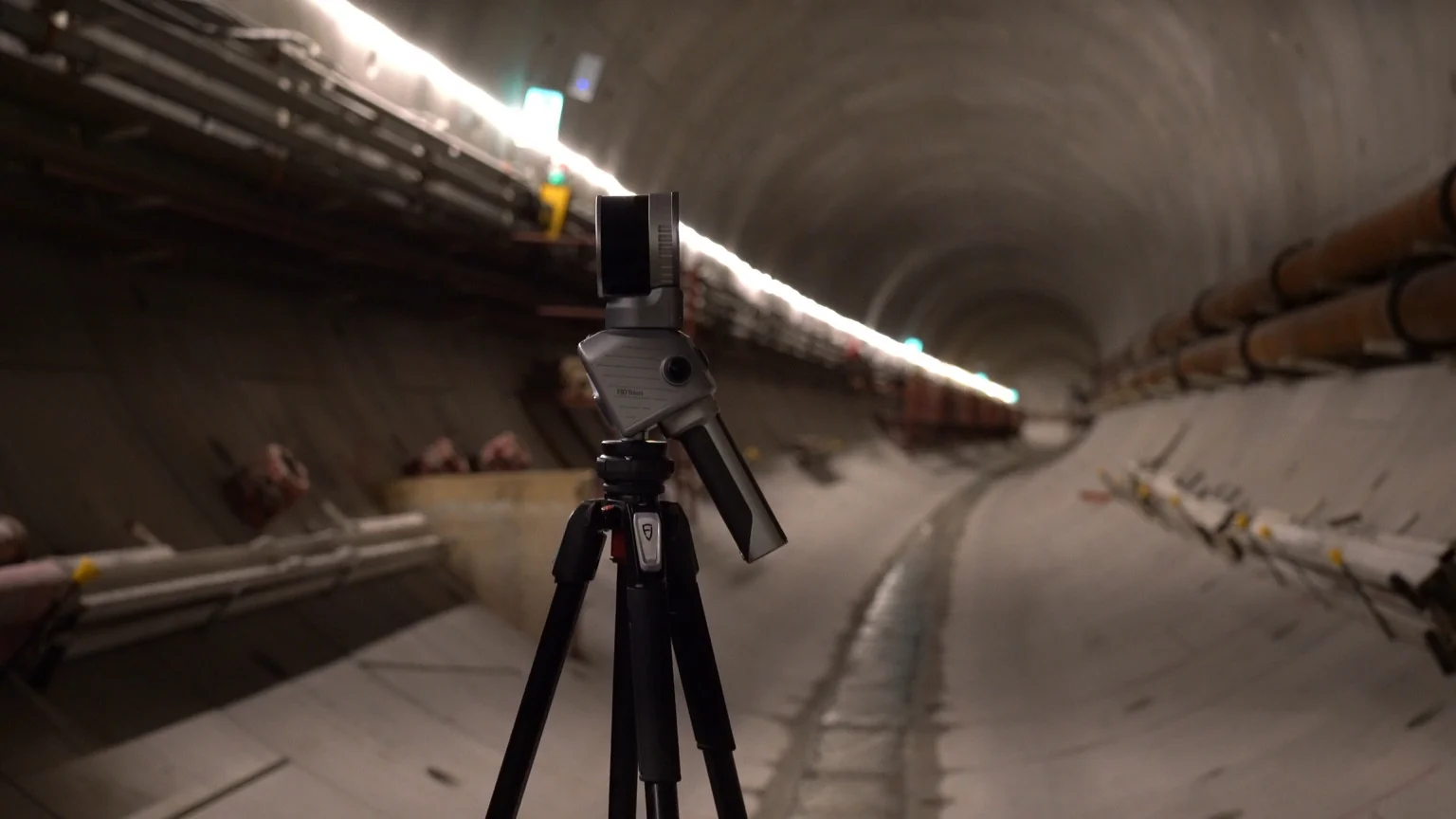

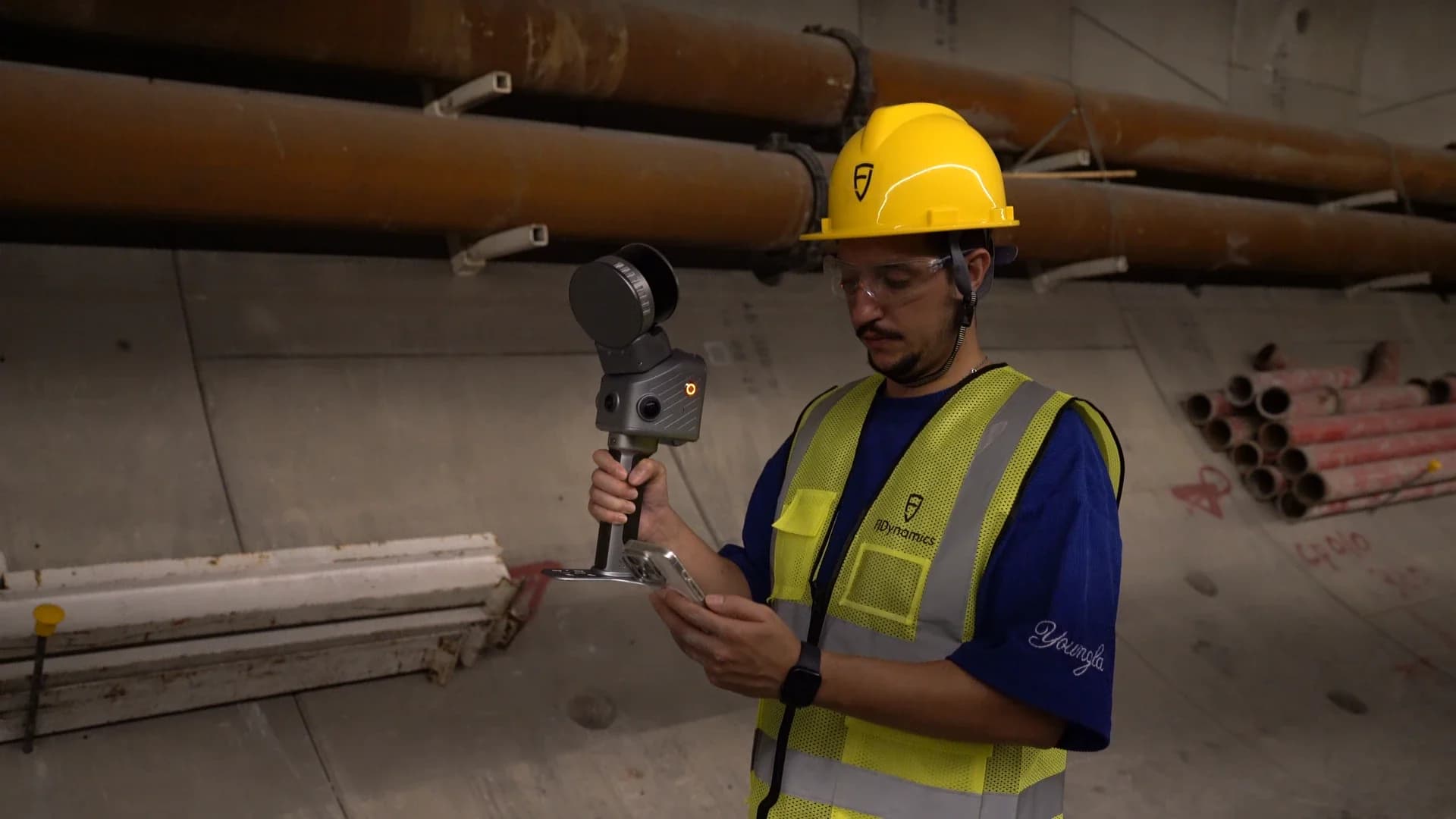

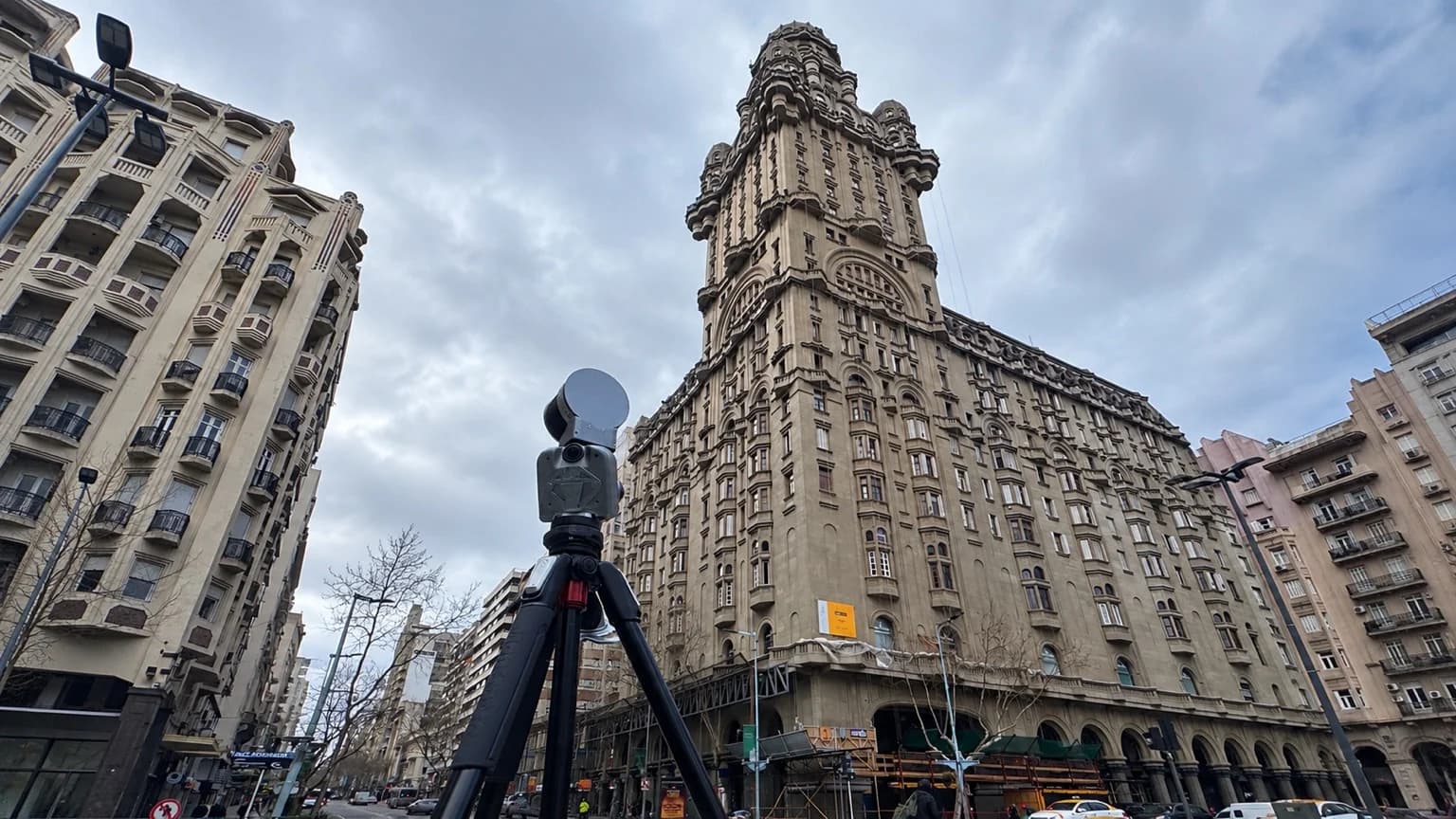

Move freely through complex spaces and cover large areas efficiently with Mobile Mode, then use Terrestrial Mode where millimetre-level accuracy and finer detail are required. Capture in as little as 30 seconds, or choose higher density in up to 2 minutes, all at the same rated accuracy.
Handle large-scale T1 data in FJD Trion Model, then access, review, share, and deliver project data through FJD Trion Model Web.
Product information
Local support
Need help choosing a configuration?
Talk to Norrpoint about T1, your site conditions, and required outputs.
- Nordic sales coverage
- Expert configuration support
- Official quotation available
Explore the range
Related scanners
Compare other FJDynamics LiDAR scanners.

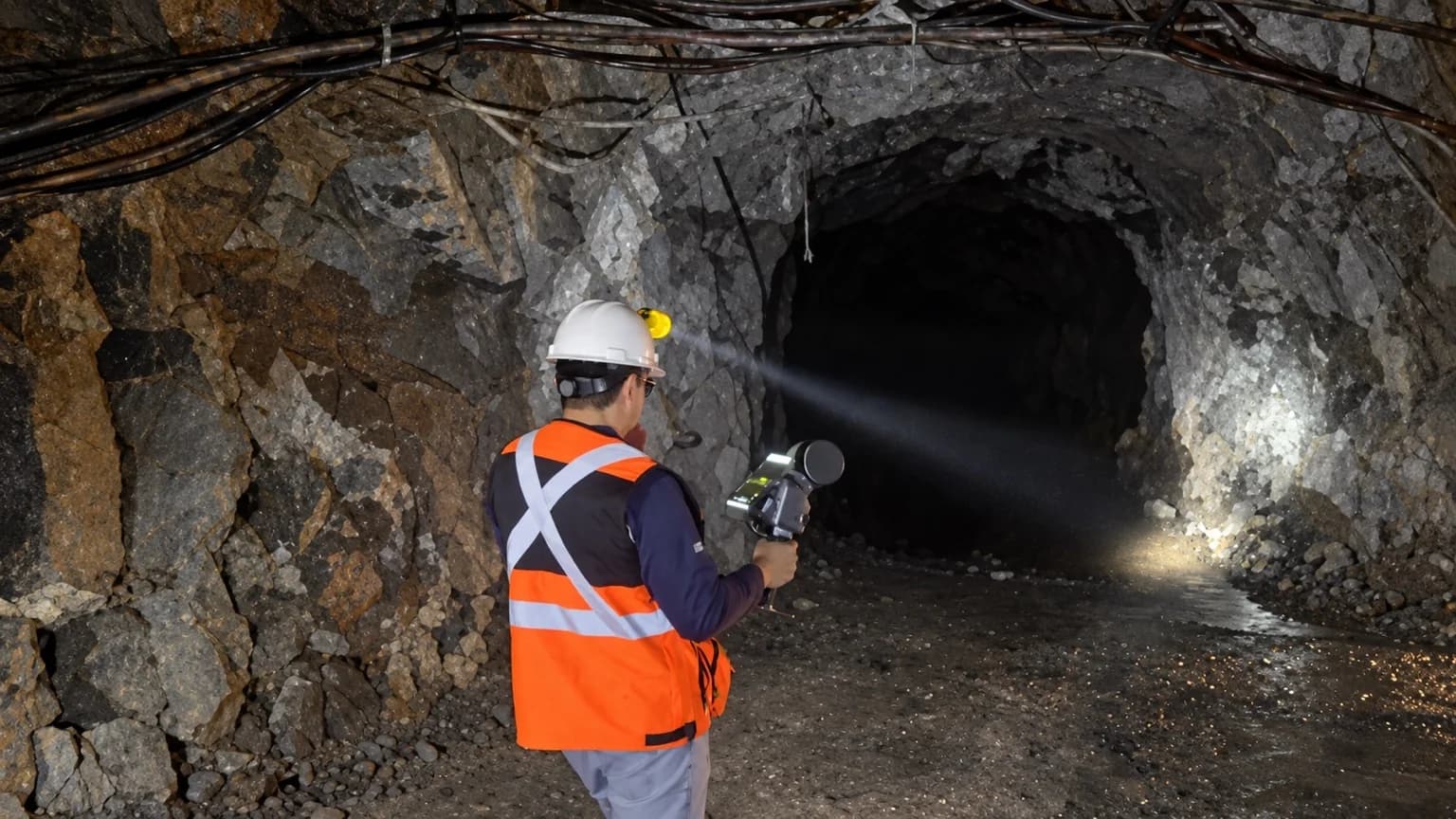

FJD · Handheld LiDAR Scanners
