FJD

S1 3D LiDAR Scanner

Flexible 3D scanning indoors, outdoors, and underground

Versatile 3D LiDAR for indoor, outdoor, and underground capture with real-time point clouds on your pad.

Range
120 m @ 90% reflectivity
Relative accuracy
2 cm
Datalogger weight
2.2 kg (incl. single battery)
Speed
S1: 320,000 pts/s · S1 PRO: 640,000 pts/s
Delivery:
5-8 working days

Price depends on configuration, availability, and delivery destination. Send a request and we will prepare a tailored quote.

Not sure which model? Find the right scanner in 4 questions →

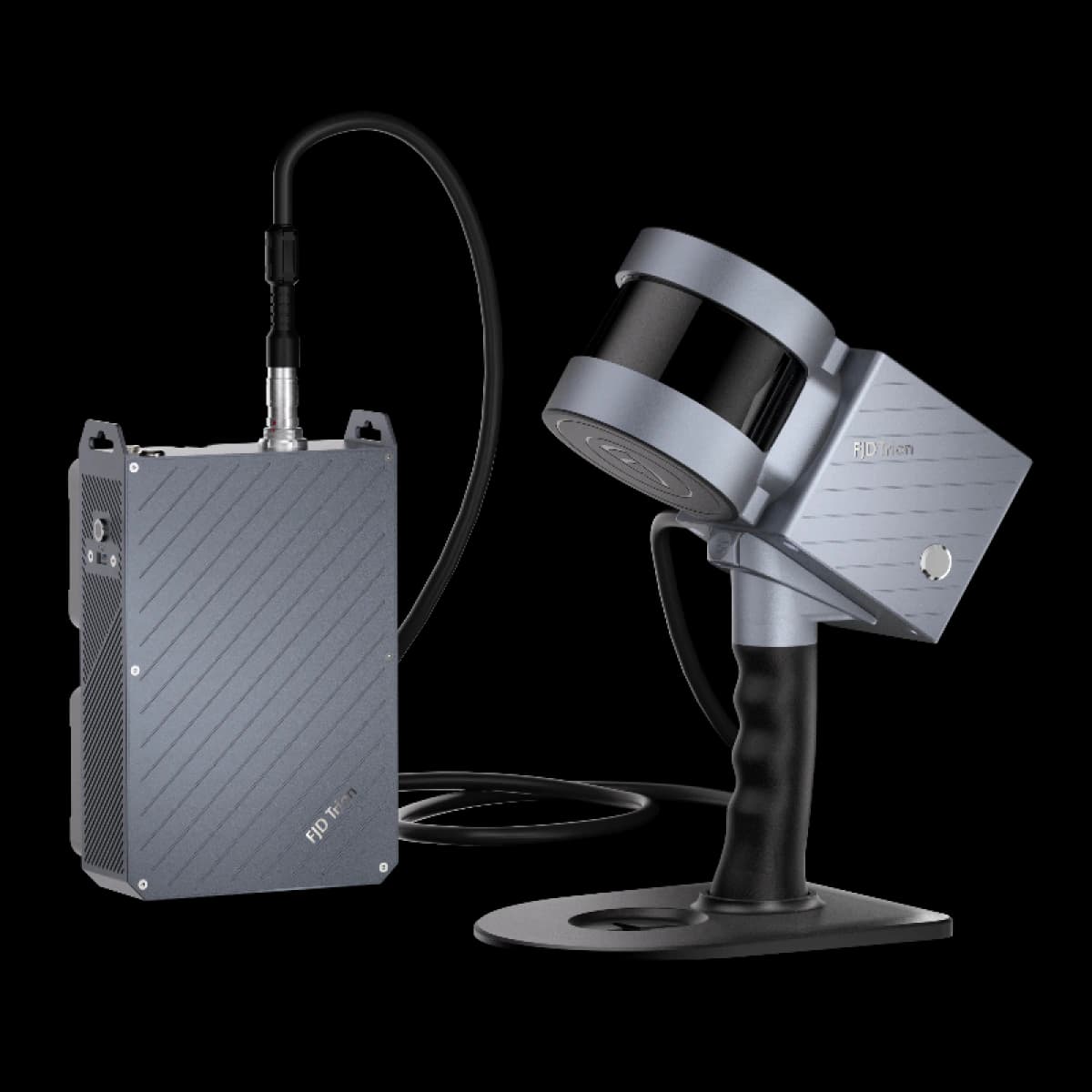

About S1 3D LiDAR Scanner

S1 and S1 Pro use FJD SLAM to capture scans and display point clouds on your mobile terminal in real time. S1 outputs 320,000 points per second with 16 sensors; S1 Pro runs 640,000 points per second with 32 sensors.

FJD lists 120 m range and 2 cm accuracy with dual hot swappable batteries. Works indoors, outdoors, and underground without GNSS.

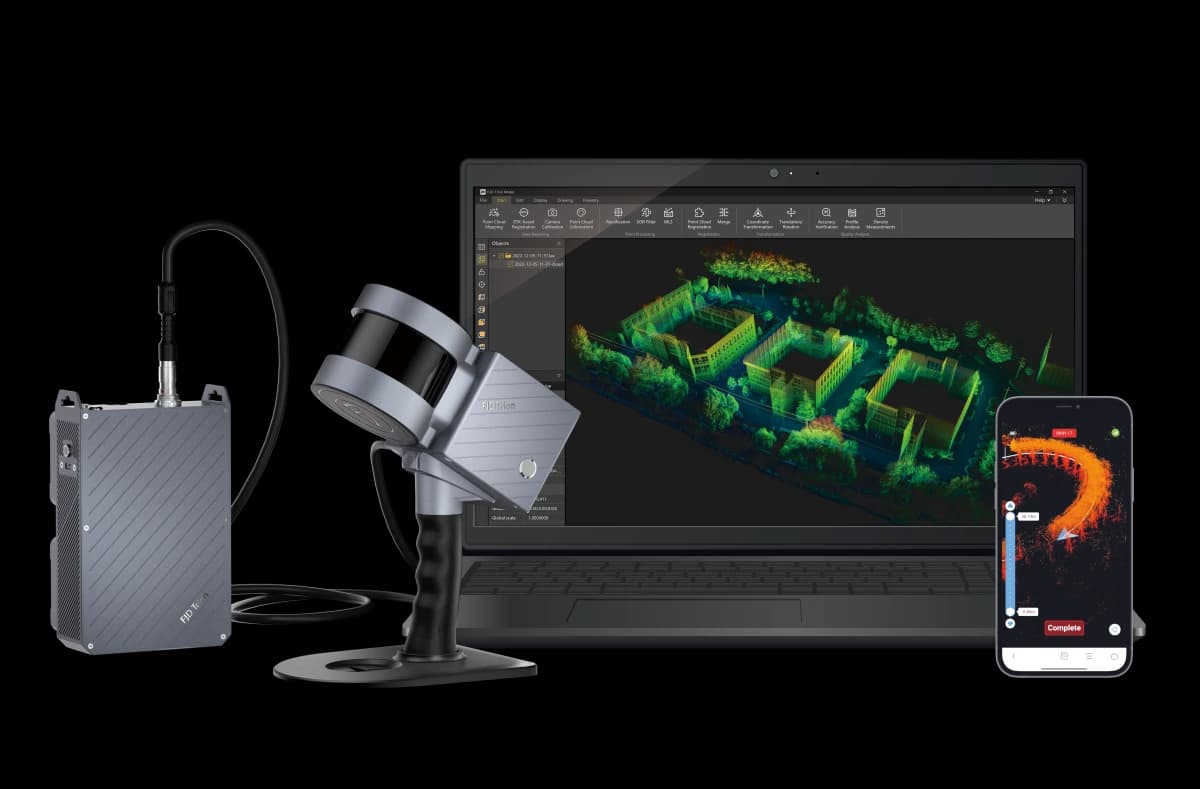

Mount handheld, on a backpack, vehicle, or drone. Process live in FJD Trion Scan, then denoise and colorize in FJD Trion Model.

Highlights

  • 120 m range · 2 cm accuracy per FJD
  • S1: 320,000 pts/s · S1 Pro: 640,000 pts/s
  • Real-time point cloud on your pad

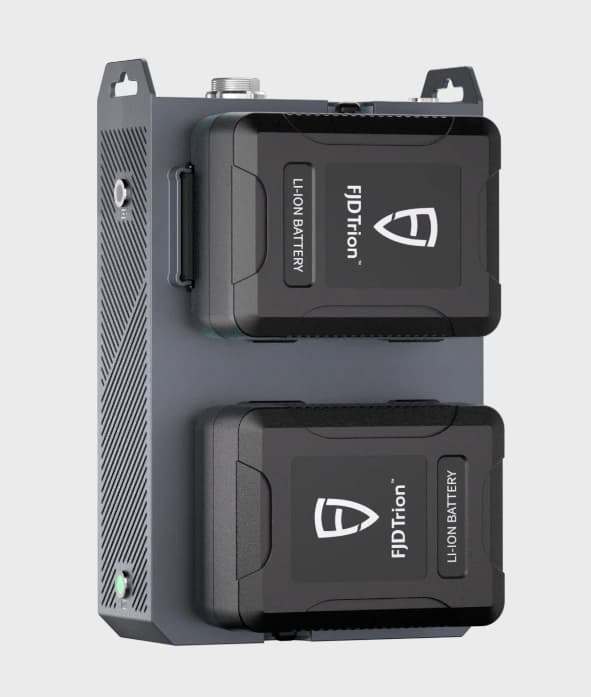

  • Hot-swappable dual battery design

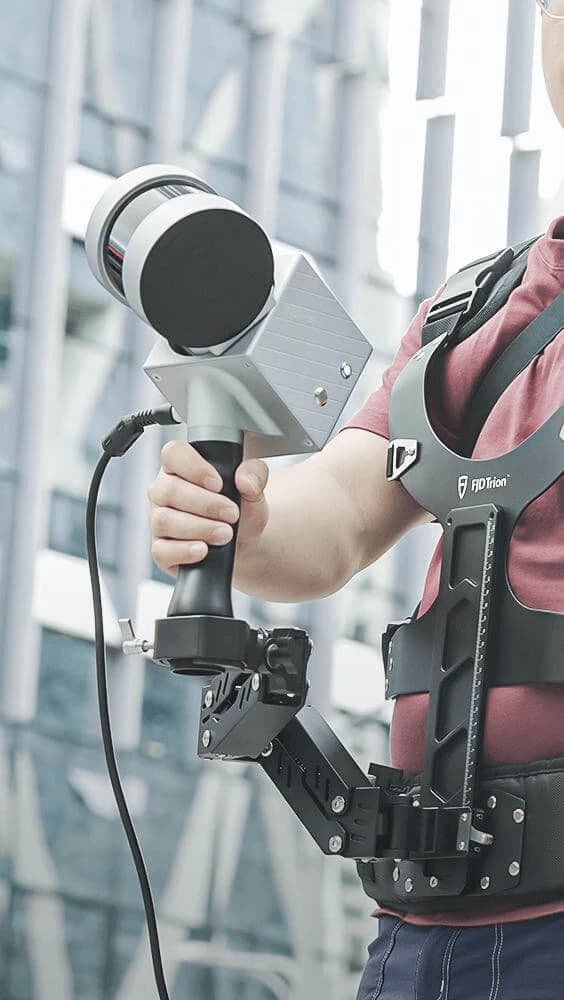

  • Handheld, vehicle, backpack, or drone
See all specifications
FJD S1 and S1 Pro 3D LiDAR Scanner — A new way to scan the world.

In Action

S1 and S1 Pro capture high quality scans with FJD SLAM and show the point cloud on your pad in real time. S1 runs 320,000 points per second; S1 Pro hits 640,000 points per second per FJD. From building interiors to open construction sites, the compact form factor lets your team keep moving without slowing down for setup.

Dual hot swappable batteries give 4 hours runtime per FJD specs. Deploy handheld, on a vehicle, backpack, or drone, then finish in FJD Trion Scan or FJD Trion Model.

Product information

FJD S1 3D LiDAR Scanner product video

Playing this video loads content from YouTube, which may set third-party cookies.

Downloads are available on request.

Frequently asked questions

Both share the same 120 m range and 2 cm accuracy. S1 Pro doubles sensor count to 32 and output to 640,000 points per second, compared with 16 sensors and 320,000 points per second on S1.

FJD Trion Scan handles real-time visualization in the field. FJD Trion Model processes, denoises, and colorizes point clouds after capture.

Yes. FJD positions S1 for indoor, outdoor, and underground work where a GNSS receiver is not available.

This scannerS1 3D LiDAR Scanner
S2 Series LiDAR Scanner

LiDAR

Range

120 m @ 90% reflectivity

S2: 120 m @ 80% reflectivity, 80 m @ 10% reflectivity S2 PRO: 120 m @ 80% reflectivity, 80 m @ 10% reflectivity S2 MAX: 300 m @ 80% reflectivity, 80 m @ 10% reflectivity

Speed

S1: 320,000 pts/s S1 PRO: 640,000 pts/s

S2: 320,000 pts/s S2 PRO: 640,000 pts/s S2 MAX: 640,000 pts/s

Sensors

S1: 16 S1 PRO: 32

S2: 16 S2 PRO: 32 S2 MAX: 32

Safety level

Class 1 / λ 905 nm, eye safety

Class 1 / 905 nm, eye safety

FOV

360° × 270°

360° × 270°

Camera

Visual SLAM

—

Yes

Resolution

—

2 × 12 MP

Image export

—

Yes

Image format

—

.jpg

System Parameters

Relative accuracy

2 cm

1.2 cm

Absolute accuracy

—

3 cm

Scanner weight

1.8 kg

1.8 kg (excludes battery, external camera, and RTK module)

Datalogger weight

2.2 kg (incl. single battery)

—

Size

—

107 × 118 × 398 mm (including base and battery)

Ingress protection

IP 54

—

Operating temperature

—

−10°C to 50°C

Storage

512 GB

512 GB (1 TB expandable)

Battery life

4 h (with 1 set of 2 batteries)

3 h (with 1 set of 2 batteries)

Power consumption

—

25 W

Power supply

—

10.8 V, 3 A

Data export

—

WiFi, USB Type-C, USB Type-A

Point cloud format

—

.las / .ply / .pts / .e57

GNSS

RTK accuracy

—

H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS

Satellite constellation

—

BDS: B1I / B2I / B3I / B1C / B2a / B2b; GPS: L1 C/A / L1C / L2P (Y) / L2C / L5; GLONASS: G1 / G2 / G3; Galileo: E1 / E5a / E5b / E6; QZSS: L1C/A / L1C / L2C / L5

PPS

—

Yes

This scannerS1 3D LiDAR Scanner
S2 Series LiDAR Scanner
LiDAR
Range120 m @ 90% reflectivityS2: 120 m @ 80% reflectivity, 80 m @ 10% reflectivity S2 PRO: 120 m @ 80% reflectivity, 80 m @ 10% reflectivity S2 MAX: 300 m @ 80% reflectivity, 80 m @ 10% reflectivity
SpeedS1: 320,000 pts/s S1 PRO: 640,000 pts/sS2: 320,000 pts/s S2 PRO: 640,000 pts/s S2 MAX: 640,000 pts/s
SensorsS1: 16 S1 PRO: 32S2: 16 S2 PRO: 32 S2 MAX: 32
Safety levelClass 1 / λ 905 nm, eye safetyClass 1 / 905 nm, eye safety
FOV360° × 270°360° × 270°
Camera
Visual SLAM—Yes
Resolution—2 × 12 MP
Image export—Yes
Image format—.jpg
System Parameters
Relative accuracy2 cm1.2 cm
Absolute accuracy—3 cm
Scanner weight1.8 kg1.8 kg (excludes battery, external camera, and RTK module)
Datalogger weight2.2 kg (incl. single battery)—
Size—107 × 118 × 398 mm (including base and battery)
Ingress protectionIP 54—
Operating temperature—−10°C to 50°C
Storage512 GB512 GB (1 TB expandable)
Battery life4 h (with 1 set of 2 batteries)3 h (with 1 set of 2 batteries)
Power consumption—25 W
Power supply—10.8 V, 3 A
Data export—WiFi, USB Type-C, USB Type-A
Point cloud format—.las / .ply / .pts / .e57
GNSS
RTK accuracy—H: 8 mm + 1 ppm RMS; V: 15 mm + 1 ppm RMS
Satellite constellation—BDS: B1I / B2I / B3I / B1C / B2a / B2b; GPS: L1 C/A / L1C / L2P (Y) / L2C / L5; GLONASS: G1 / G2 / G3; Galileo: E1 / E5a / E5b / E6; QZSS: L1C/A / L1C / L2C / L5
PPS—Yes
